8 channel 1080N using 3520DV300 plan(ecnomic board)
Release time:2017-08-31 Source:未知 Writer:admin
8channel 1080N using 3520DV300 plan

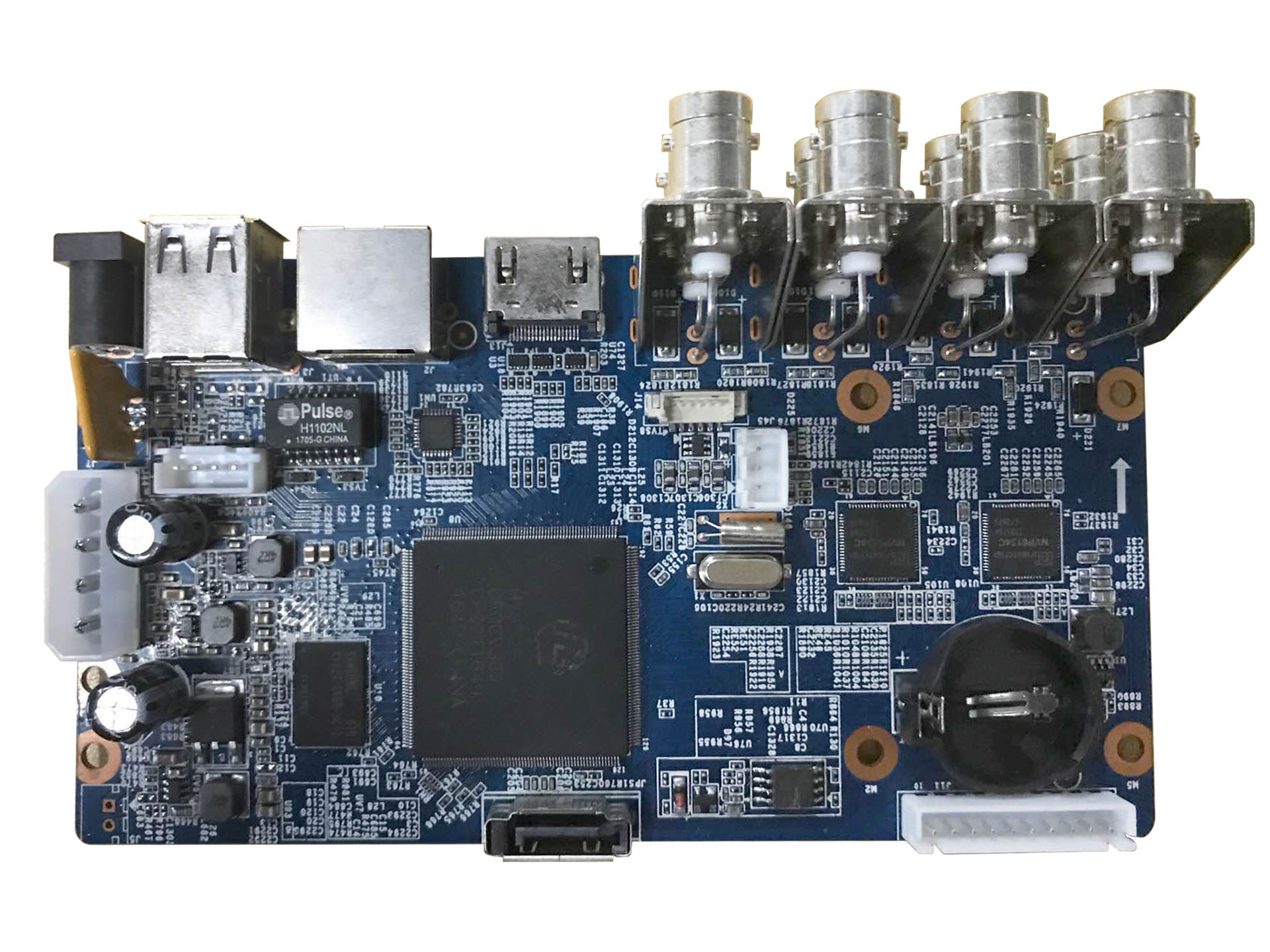

1. Motherboard
Master chip |
Memory |
FLASH |
AD chip |
HDD |
3520DV300 |
2G |
16M |
6134B |
1 |
Note:Flash 8M don't have 3G, WIFI function, CAB package need to download manually.
2. Product mode
Channel |
Mode
(Analog channel+Digital channel) |
Playback |
No |
Channel number*Resolution/Frame rate |
Channel number*Resolution/Frame rate |
8CH |
1 |
8 * 1080N/12 + 0 |
8 * 1080N/12 |
2 |
4 * 1080N/25 + 4 * 1080P/25 |
2 * 1080P/25 |
3 |
2 * 1080N/25 + 6 * 1080P/25 |
2 * 1080P/25 |
4 |
0 + 8 * 1080P/25 |
2 * 1080P/25 |
5 |
0 + 4 * 3M/25 |
2 * 3M/25 |
3.Technical parameters
System |
Compressed format |
H.264 |
Operating System |
embedded Linux |
Video |
Maximum Input |
8 |
VGA output |
Yes |
BNC output |
Yes |
HDMI output |
Yes |
Record |
Maximum Record |
8 |
Record type |
Regular, Manual,Detect,Alarm |
Playback |
Maximum Playback |
4 |
Search ways |
Point in time, Calendar,Event, Channel |
Backup |
USB mobile hard disk,
U disk |
Yes |
USB DVD CD Writer |
Yes |
Format |
DAV、AVI |
Remote view |
Browser |
Many Web browser |
CMS |
CMS3.0 |
APP |
iPhone, Android |
Store |
HDD number |
1 |
E-SATA |
No |
Network |
Network Interface |
10 / 100 Mbps Ethernet (RJ-45) |
Network Protocol |
TCP/IP, DHCP, DDNS, NTP, SMTP |
Others |
Remote |
Yes |
Power Supply |
DC12V /4A |
Work Temperature |
-10°C ~60°C |
Work Humidity |
10% ~ 90% Humidity |
4.Features
-
AHD/TVI/CVI/CVBS/NVR five-in-one, many kinds of mode to switch, support full HD analog, HD analog plus digit HD, full digit HD.
-
Through Cloud service, easily realize net penetration, only one step to achieve remote viewing.
-
Support mobile phone view.(iPhone Android)。
-
Support many kinds of Web browsers.(IE/Chrome/Firefox/Safari)。
-
Support VGA、TV、and HDMI output at the same time.
-
Powerful network service(DHCP、PPPOE、FTP、DNS、DDNS、NTP、UPNP、Email etc. ) Perfect supporting(WEB、Client 、SDK), easily achieve interconnection.
-
Support twenty more kinds of languages.
-
Freely Change boot logo and choose interface style.
